ELECTRONIC

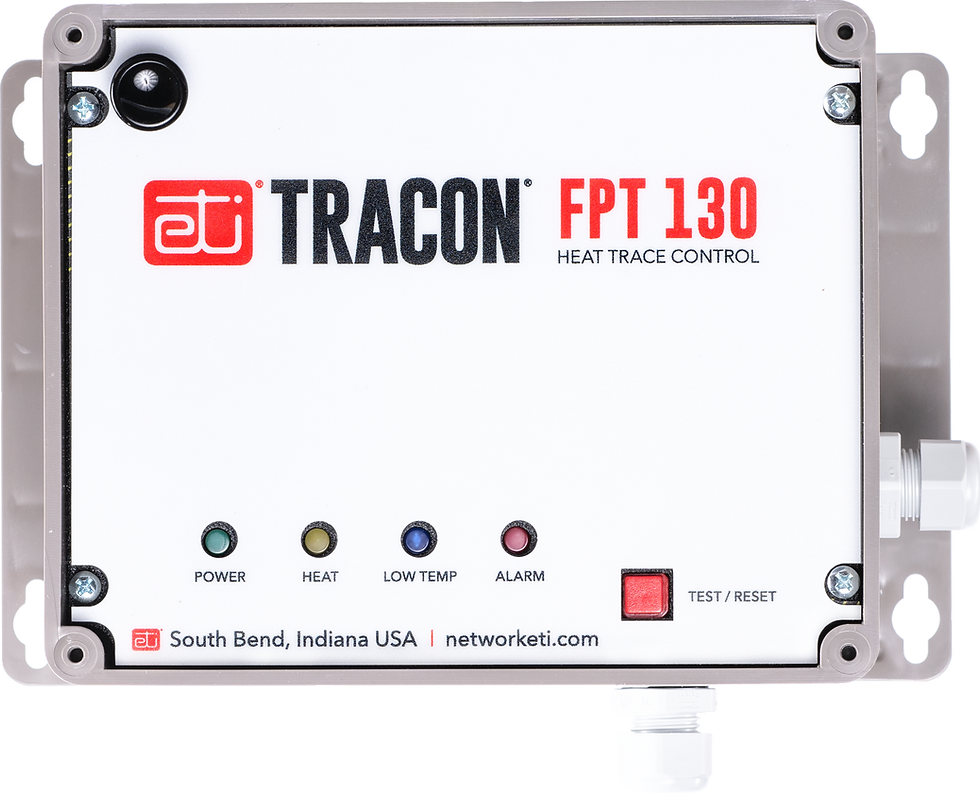

FPT 130 Single-Point Freeze Protection Heat-Trace Control

Manufacturer: Environmental Techonology, Inc.

Approvals: UL, CSA

Applications: Freeze Protection Control

The FPT 130 Heat-Trace Control is a single-point microprocessor based heat-trace control thermostat.  It is ideal for applications which require Ground-Fault Equipment Protection (GFEP).  The temperature setpoint is adjustable from 30°F, 38°F, 45°F, or 50°F.

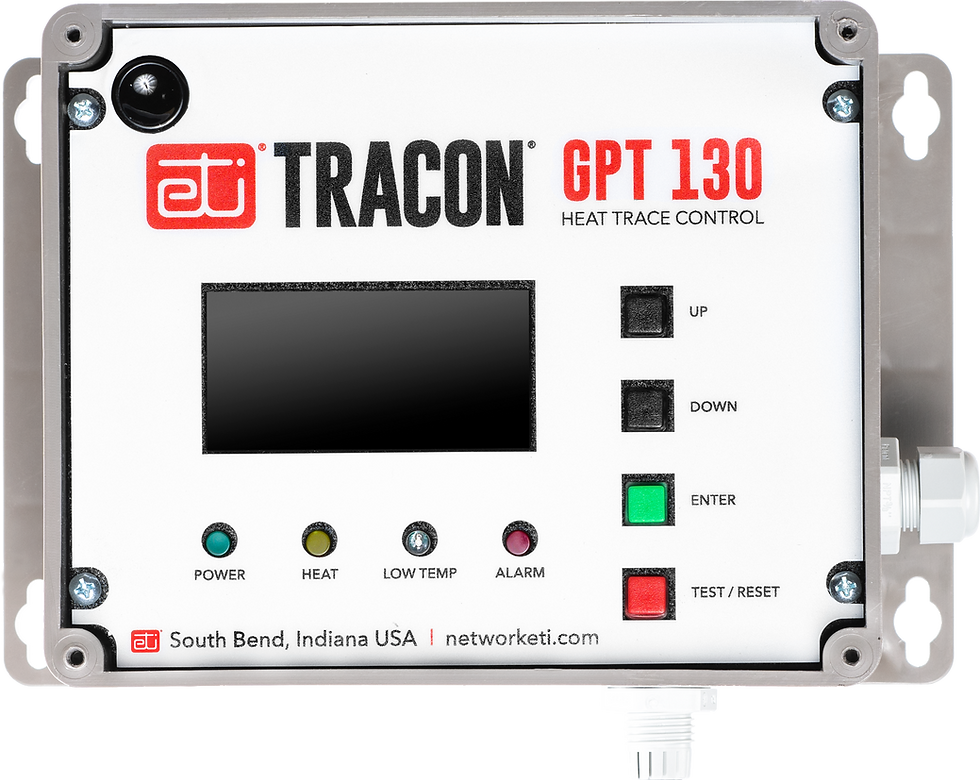

GPT 130 Single-Point General Purpose Heat-Trace Control

Manufacturer: Environmental Techonology, Inc.

Approvals: UL, CSA

Applications: Freeze Protection, Hot Water Temperature, & Other Temperature Monitoring & Control Applications

The GPT 130 Heat-Trace Control is a single-point microprocessor based heat-trace control thermostat.  It is ideal for applications which require Ground-Fault Equipment Protection (GFEP).  The temperature setpoint is adjustable from -99°F to 99°F.

GPT 230 Dual-Point General Purpose Heat-Trace Control

Manufacturer: Environmental Techonology, Inc.

Approvals: UL, CSA

Applications: Freeze Protection, Hot Water Temperature, & Other Temperature Monitoring & Control Applications

The GPT 230 Dual Channel Heat-Trace Control is a dual-point microprocessor based heat-trace control thermostat.  It is ideal for applications which require Ground-Fault Equipment Protection (GFEP).  The temperature setpoint is adjustable from -99°F to 99°F.

CM-2201 Single-Point Circuit Management System

Manufacturer: Nelson Heat Trace

Approvals: CSA

Applications: Freeze Protection, Hot Water Temperature, & Other Temperature Monitoring & Control Applications

Nelson's CM-2201 is a microprocessor based digital control and monitoring system that has been specifically designed for stand-alone or networked electric heat tracing applications.  This system provides temperature control and heater cable monitoring while communicating with additional information to operations personnel such as temperature alarms, voltage and current alarms, ground fault leakage, sensor failures and communications failures.

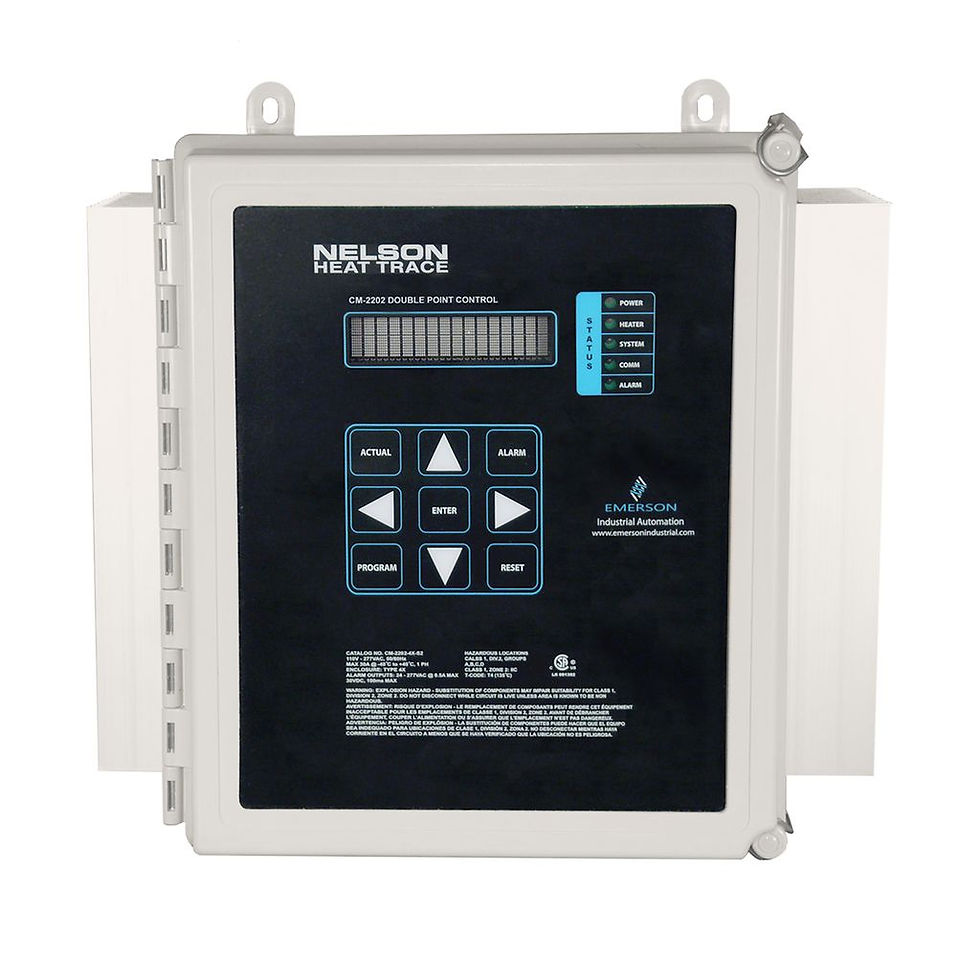

CM-2202 Dual-Point Circuit Management System

Manufacturer: Nelson Heat Trace

Approvals: CSA

Applications: Freeze Protection, Hot Water Temperature, & Other Temperature Monitoring & Control Applications

Nelson's CM-2202 is a microprocessor based digital control and monitoring system that has been specifically designed for stand-alone or networked electric heat tracing applications.  This system provides temperature control and heater cable monitoring while communicating with additional information to operations personnel such as temperature alarms, voltage and current alarms, ground fault leakage, sensor failures and communications failures for two control and monitoring units.

TraceMate Series Controllers

Manufacturer: Nextron

Approvals: FM, CSA

Applications: Freeze Protection, Hot Water Temperature, & Other Temperature Monitoring & Control Applications

By combining control, system monitoring and testing requirements of a heat trace controller in a single package, TraceMate Series Controllers offer you significant low-cost system upgrades and a controller that can be customized to meet your specific requirements.

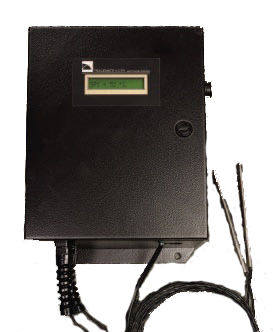

TraceMate II-CTR Series Controllers

Manufacturer: Nextron

Approvals: FM, CSA

Applications: Freeze Protection, Hot Water Temperature, & Other Temperature Monitoring & Control Applications

Based on the outstanding reliability of Nextron’s proven technology, the TraceMate II-CTR offers advanced monitoring features including an LCD display along with convenient programming capabilities. The unit can be programmed by a 12-point dipswitch located on the printed circuit board, or by laptop programming. Specialized software is downloaded into compatible PC devices for field communication to the thermostat unit.

MECHANICAL



TF4X40 Thermostat

Manufacturer: Nelson Heat Trace

Applications: Freeze Protection

Nelson Heat Trace TF4X40 thermostat is used for controlling heat tracing systems in ordinary locations.  This thermostat is housed in a polyester enclosure.

TA4X140 Thermostat

Manufacturer: Nelson Heat Trace

Applications: Freeze Protection

Nelson Heat Trace TA4X140 thermostat is used for ambient temperature control in ordinary or corrosive locations.  This thermostat is housed in an aluminum enclosure.

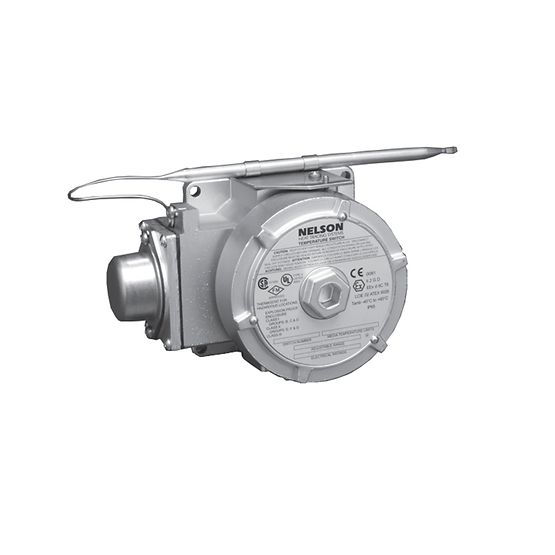

TA7140 Thermostat

Manufacturer: Nelson Heat Trace

Applications: Freeze Protection

Nelson Heat Trace TA7140 thermostat is for ambient temperature control in hazardous locations.  This thermostat is housed in an aluminum enclosure.

TH4X325 Thermostat

Manufacturer: Nelson Heat Trace

Applications: Freeze Protection

Nelson Heat Trace TH4X325 thermostat is used for controlling heat tracing systems in ordinary locations.  This thermostat is housed in an aluminum enclosure.

TH7325 Thermostat

Manufacturer: Nelson Heat Trace

Applications: Freeze Protection

Nelson Heat Trace TH7325 thermostat is used for controlling heat tracing systems in hazardous locations.

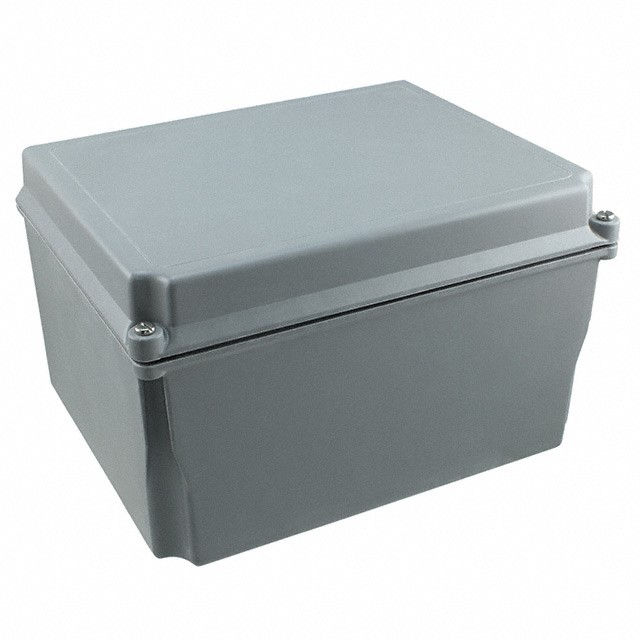

HT4X50/HT4X50-TC Contactor

Applications: Freeze Protection/Roof & Snow

This single or dual contactor can be used in ordinary locations for switching multi loads with one thermostat or when current ratings exceed that of the thermostat.
